Miniature Accelerometers

Model MAQ14 Series

General purpose charge output miniature accelerometers. Side exit cable or connector. 1/4-28 UNF or 10-32 UNF mounting hole. ±1000 G dynamic range

The Model MAQ14 charge output miniature accelerometer is designed to be used in Industrial test and automation environments: including laboratory testing, modal studies and test cells where high temperatures are likely to be encountered and where space is limited and small size is desired or a high natural frequency is required. The MAQ14 is a self generating piezoelectric transducer which has no internal electronics and requires no external power for operation.

These units are usually connected to a local charge amplifier that is mounted as near as possible in a lower temperature environment. The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data.

Features
  • Small size
  • Charge output (pC/G)
  • 18 kHz mounted frequency
  • General purpose
  • Side entry microdot connector
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Accelerometer Mating Connector/Cable Assembly Datasheet
application/pdf 325.33 KB
9/2/2021
325.33 KB
Test & Measurement Model MAQ14 Accelerometer Datasheet
application/pdf 194.9 KB
9/2/2021
194.9 KB
Test & Measurement Accelerometer Accessories Datasheet
application/pdf 325.39 KB
9/2/2021
325.39 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MAQ14 Series Product Photo
application/zip 329.44 KB
9/2/2021
329.44 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

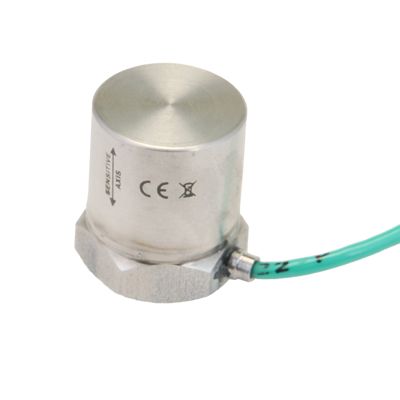

Model MAQ14 Top View
image/png 69.49 KB
9/2/2021
69.49 KB

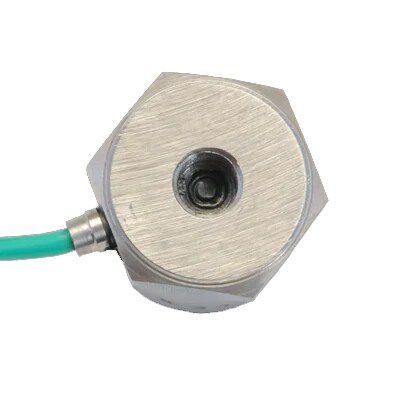

Model MAQ14 Bottom View
image/jpeg 15.62 KB
9/2/2021
15.62 KB
Model MAQ14 lowres photo
image/jpeg 9.24 KB
9/2/2021
9.24 KB

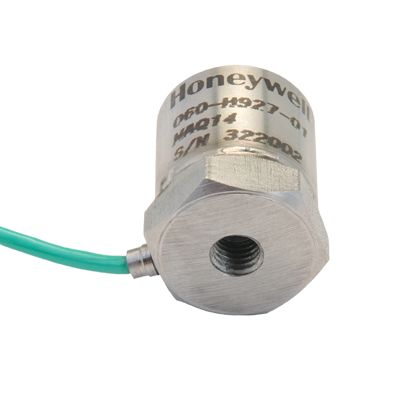

Model MAQ14 Bottom Angle View
image/png 89.77 KB
9/2/2021
89.77 KB

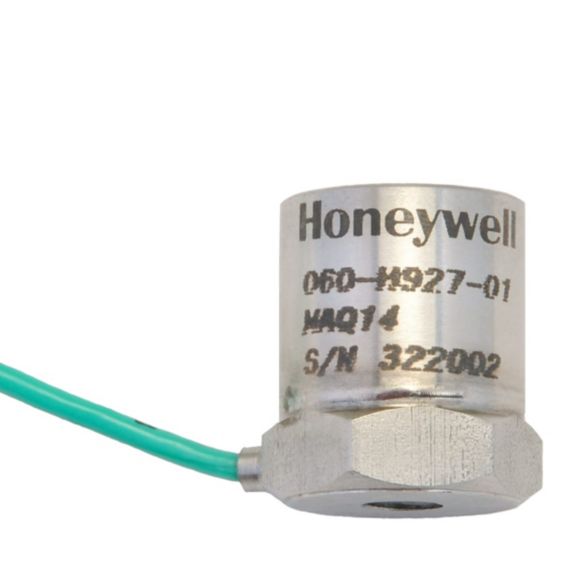

Model MAQ14 highres photo
image/jpeg 52.54 KB
9/2/2021
52.54 KB

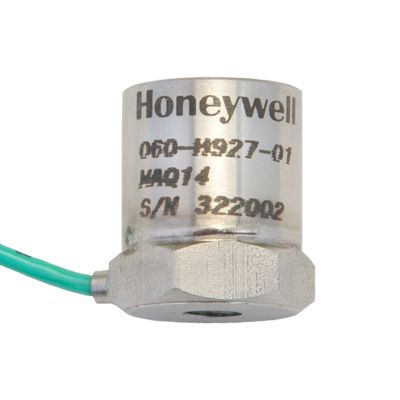

Model MAQ14 Front View
image/png 98.83 KB
9/2/2021
98.83 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model MAQ14 Series Product Photo
329.44 KB
9/2/2021
329.44 KB
T&M Overview Brochure
428.72 KB
9/2/2021
428.72 KB
Model MAQ14 Top View
69.49 KB
9/2/2021
69.49 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
325.33 KB
Model MAQ14 Bottom View
15.62 KB
9/2/2021
15.62 KB
Model MAQ14 lowres photo
9.24 KB
9/2/2021
9.24 KB
Model MAQ14 Bottom Angle View
89.77 KB
9/2/2021
89.77 KB
Test & Measurement Model MAQ14 Accelerometer Datasheet
194.9 KB
9/2/2021
194.9 KB
Model MAQ14 highres photo
52.54 KB
9/2/2021
52.54 KB
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
325.39 KB
Model MAQ14 Front View
98.83 KB
9/2/2021
98.83 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
Test & Measurement Model MAQ14 Accelerometer Datasheet
194.9 KB
9/2/2021
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
T&M Overview Brochure
428.72 KB
9/2/2021
Model MAQ14 Series Product Photo
329.44 KB
9/2/2021
Model MAQ14 Top View
69.49 KB
9/2/2021
Model MAQ14 Bottom View
15.62 KB
9/2/2021
Model MAQ14 lowres photo
9.24 KB
9/2/2021
Model MAQ14 Bottom Angle View
89.77 KB
9/2/2021
Model MAQ14 highres photo
52.54 KB
9/2/2021
Model MAQ14 Front View
98.83 KB
9/2/2021
SKU
Description
alt
060-K896-01
Model MAQ14 general purpose charge accelerometer, 50 pC/G, 10-32 UNF microdot connector
SKU
Description
alt
060-K896-01
Model MAQ14 general purpose charge accelerometer, 50 pC/G, 10-32 UNF microdot connector
