Load Cells for Special Applications

X-Y Force - Model 6443

Complete two-component system, including flexures, provides unusual structure strength & to minimize crosstalk between the two transducers.

Honeywell’s X-Y force sensor is constructed of two strain gauge bridges mounted at 90° and isolated by a flexure system. The complete, two-component system, including flexures, is machined from one specially-prepared metal billet to provide unusual structure strength and to minimize crosstalk between the two transducers.

This unique sensor has excellent linearity characteristics and maximum structure life. Need additional modifications or a custom design? Contact us for a quote.

Features
  • Compact size
  • 0.1 % linearity and hysteresis, respectively
  • Simultaneous dual-axis readings
  • Minimal crosstalk
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Model 6443 X-Y Force Sensor Datasheet
application/pdf 306.16 KB
9/2/2021
306.16 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Load Cell Range Guide
application/pdf 1.26 MB
9/2/2021
1.26 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 6443 Outline Drawing
application/pdf 53.55 KB
9/2/2021
53.55 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Tire Uniformity Machines for Tire Manufacturing
application/pdf 1.51 MB
9/2/2021
1.51 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
X-Y Force - Model 6443 Product Photo
application/zip 114.02 KB
9/2/2021
114.02 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

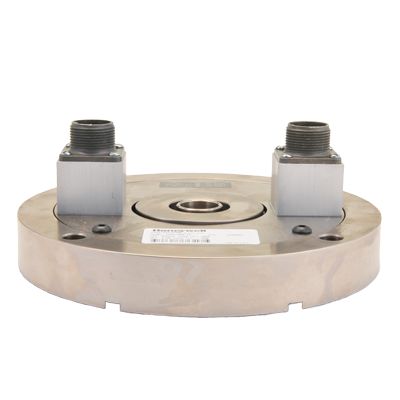

Model 6443 Front View
image/png 89.65 KB
9/2/2021
89.65 KB

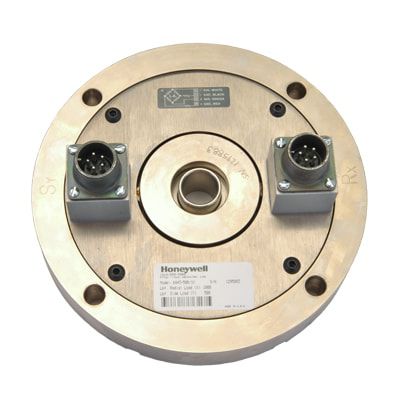

Model 6443 Top View
