S & Z Beam Style Load Cells

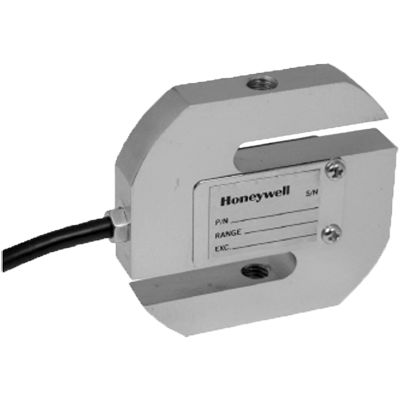

Model 102
S-type/z-beam load cells. Capacities of 20 kg to 1,000 kg. ±0.02% full-scale accuracy
Geral
The Model 102 load cell combines both a compact form and high precision to offer a superior tension and compression force transducer. The one-piece, S-shaped design achieves a maximum non-linearity of 0.02 % full scale for load ranges from 20 kg to 1,000 kg. Additional features include minimal temperature effects on zero and span of 0.002 %/°C and 0.002 %/°C, respectively.
Features
- 20 kg to 1000 kg range
- ±0.02 % accuracy
- One-piece, nickel-plated alloy steel construction
- Integral cable
- Cost efficient
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Model 102 Load Cell Datasheet
application/pdf 225.62 KB
9/2/2021
225.62 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Load Accessories Datasheet
525.93 KB
9/2/2021
525.93 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Load Accessories Datasheet
525.93 KB
9/2/2021
Product Number
SKU
Description
060-J935-05
Model 102 Load Cell:, 100 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
060-J935-07
Model 102 Load Cell:, 200 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, Radial electrical Exit Orientation
060-J935-12
Model 102 Load Cell:, 1000 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
SKU
Description
060-J935-05
Model 102 Load Cell:, 100 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
060-J935-07
Model 102 Load Cell:, 200 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, Radial electrical Exit Orientation
060-J935-12
Model 102 Load Cell:, 1000 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
