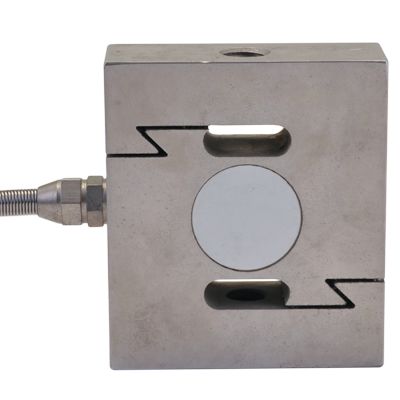

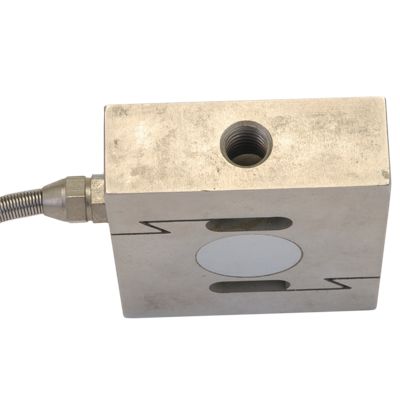

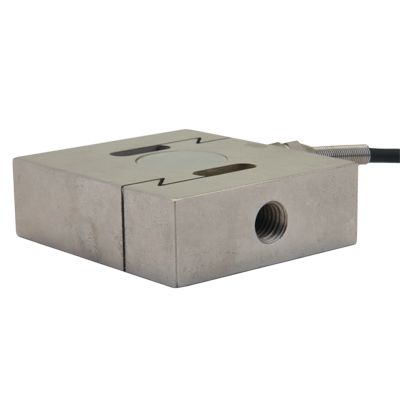

S & Z Beam Style Load Cells
Model 123
S-type/z-beam load cells. Capacities of 1,000 kg to 20,000 kg. ±0.03% full-scale accuracy
Geral
The Model 123 load cell combines both a compact and high precision form to offer a superior tension and compression force transducer. The one-piece, S-shaped design achieves a maximum non-linearity of 0.03 % full scale for load ranges from 1,000 kg to 20,000 kg.
Features
- 1000 kg to 20000 kg range
- ±0.03 % accuracy
- Built-in overload resistance
- One-piece, nickel-plated alloy steel construction
- Integral cable
- Cost efficient
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 123 Load Cell Datasheet
application/pdf 413.32 KB
9/2/2021
413.32 KB
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 123 Load Cell Datasheet
application/pdf 413.32 KB
9/2/2021
413.32 KB
Test & Measurement Load Accessories Datasheet
application/pdf 525.93 KB
9/2/2021
525.93 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Load Accessories Datasheet
525.93 KB
9/2/2021
Product Number
SKU
Description
060-K626-02
Model 123 Load Cell:, 1000 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
060-K626-03
Model 123 Load Cell:, 1500 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
060-K626-06
Model 123 Load Cell:, 5000 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
060-K626-07
Model 123 Load Cell:, 7500 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
060-K626-08
Model 123 Load Cell:, 10000 Kg, -20°C to 55°C [-5°F to 130°F] temperature compensation, non-amplified (mV/V), PVC cable, 1,5 m [5 ft] cable length, radial electrical exit orientation
