Calibration Pressure Transducers

Model AG401

Digital Pressure Indicator. High pressure grade. 15 psi to 60000 psi. 0.1% FS accuracy

This combination pressure transducer and digital readout is designed for use in both industrial and laboratory applications. Accu-Gage offers portability, enhanced accuracy, industrial grade durability, and very competitive prices. Accu-Gage units are also often suitable for panel mounting to provide a clear readout of pressure or vacuum to machine operators on the process line or as on-line quality control moni­tors.

They are also often additions to statistical process control systems, using the RS-232 or RS-485 interface. Accu-Gage often handles even the harshest industrial environ­ments with a metal case and handle to avoid failures caused by shock or vibration often associated with the use of plastics. These instruments are often replacements for: precision dial gauges, mercury columns, and quartz tube barometers.

The Accu-Gage model AG-400 was designed to provide the most enhanced accuracy (0.05 % F.S.) and overall stability available in digital pressure indicators. To achieve the high level of stability demanded by Metrology and Calibration/Standards laboratories. Honeywell has chosen to fit all AG-400 instruments with our dependable, enhanced-accuracy pressure transducer. During manufacture the transducers undergo an extensive burn-in program.

In addition, all Accu-Gage instruments undergo individual burn-in prior to shipment, thus the AG benefits from a double burn-in at both transducer and instrument level. This truly enhances the long-term stability of the instrument enabling the Accu-Gage to perform as a high integrity pressure transfer standard. Full traceability is assured to National Standards.

Features
  • Transducer with read out
  • Enhanced reading stability
  • 0.05 % (AG400) or 0.10 % (AG401) F.S. accuracy
  • 15 psi to 60000 psi
  • N.I.S.T. traceable instrument and transducer
  • CE approved
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
AG400/AG401 Accu-Gage Digital Gauge and Pressure Indicator Datasheet
application/pdf 343.96 KB
9/2/2021
343.96 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Oil and Gas Brochure -
application/pdf 3.4 MB
10/25/2022
3.4 MB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model AG400/AG401 Outline Drawing
application/pdf 218.48 KB
9/2/2021
218.48 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model AG400,Model AG401 Product Photo
application/zip 1.06 MB
9/2/2021
1.06 MB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

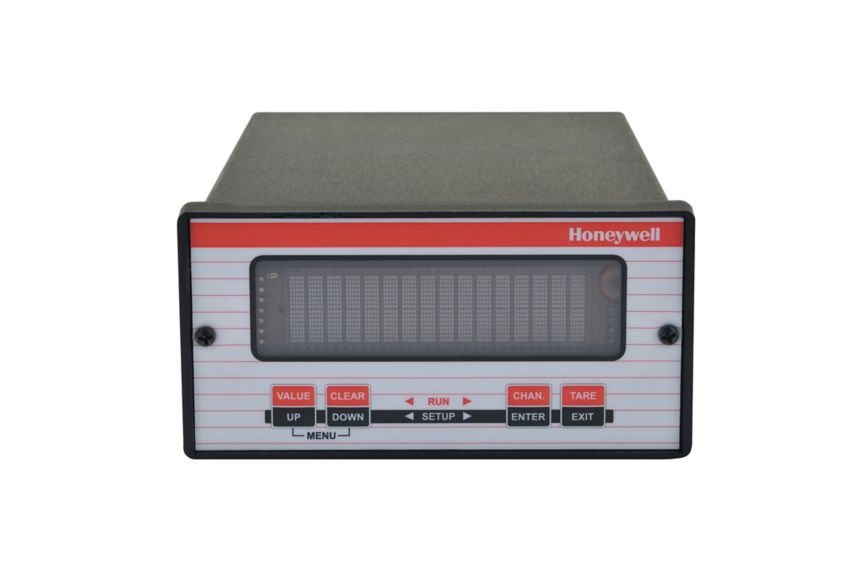

Model AG400/AG401 Front View
image/jpeg 654.58 KB
9/2/2021
654.58 KB

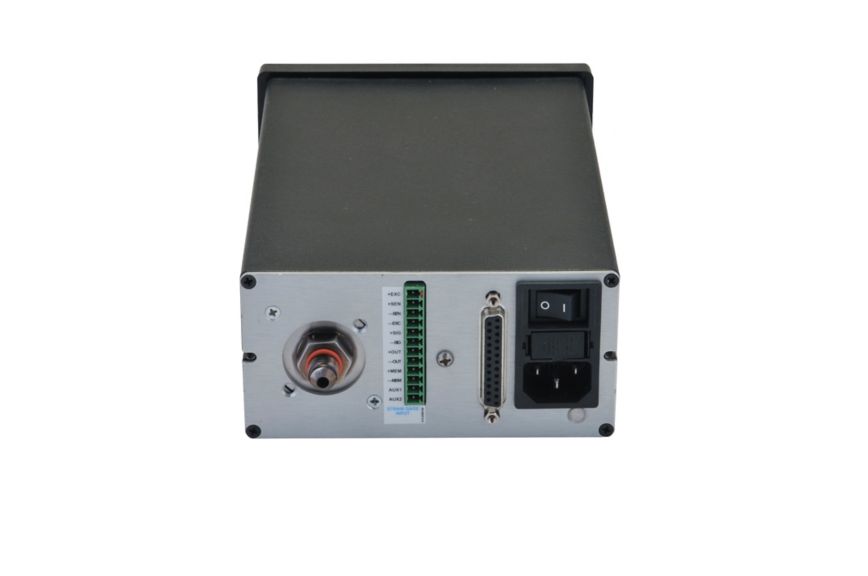

Model AG400/AG401 Back View
image/jpeg 337.51 KB
9/2/2021
337.51 KB

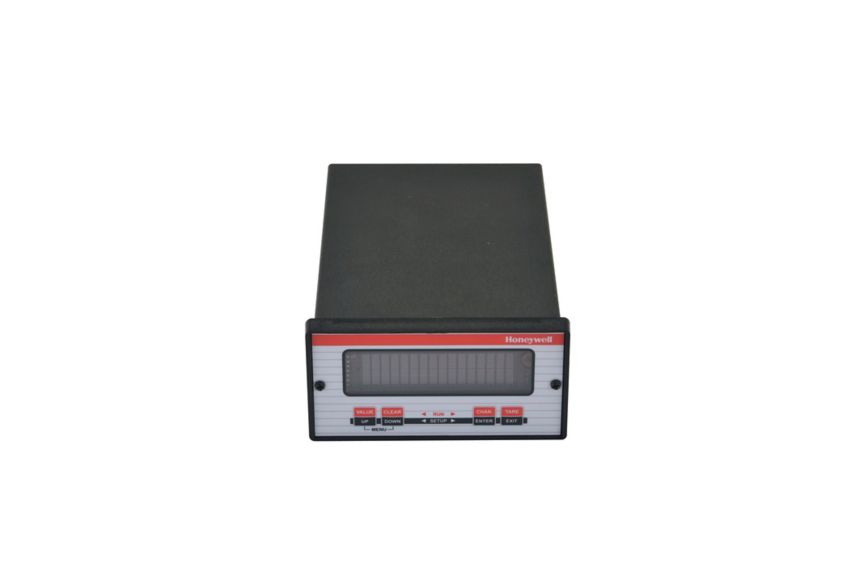

Model AG400/AG401 Top View
