Hazardous Location Pressure Transducers

Model 811FM

Two-wire. Gage/absolute pressure transmitter. psig/a to 10,000 psig/a. 4 mA to 20 mA output. 0.25 % accuracy. True gage design hermetic

The Model 811FM is a two-wire transmitter that has welded stainless steel diaphragms for use with liquid, gas or corrosive vapors. The Model 811FM pressure transducers are manufactured out of 17-4 PH stainless steel wetted material for ranges up to 2,000 psi or 15-5 PH stainless steel, wetted material for ranges 2,000 psi and greater. This model has a hermetically-sealed, stainless steel cases that requires no adjustment. These transducers are corrosion and shock resistant, as well as, reverse polarity protected. The 4 mA to 20 mA output permits long cable runs up with a high signal-to-noise ratio. A dual pipe thread pressure fitting is provided for easy bulkhead mounting.

Features
  • 2 psig/a to 10000 psig/a range
  • Bulkhead mounting
  • All welded, stainless steel, “true gage or absolute” design
  • Explosion proof
  • 0.25 % accuracy
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Pressure Accessories Datasheet
application/pdf 384.51 KB
9/2/2021
384.51 KB
Model 811FM Pressure Transducer Datasheet
application/pdf 276.24 KB
9/2/2021
276.24 KB
Manuais e guias
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Pressure Transducer Range Guide
application/pdf 1.03 MB
9/2/2021
1.03 MB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 811FM External Wiring Diagram
application/pdf 84.48 KB
9/2/2021
84.48 KB
Model 811FM Outline Drawing - 2 psig to 5 psig
application/pdf 73.27 KB
9/2/2021
73.27 KB
Model 811FM Outline Drawing - 21 psig to 500 psig
application/pdf 210.26 KB
9/2/2021
210.26 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/9/2022
6.35 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 811FM Product Photo
application/zip 352.89 KB
9/2/2021
352.89 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

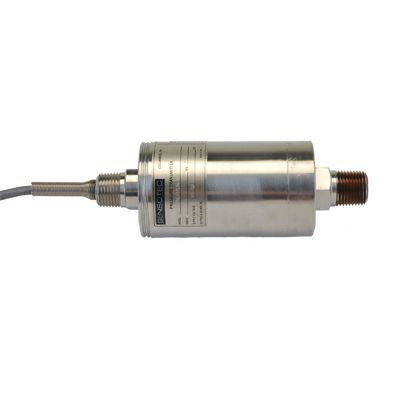

Model 811FM Side View
image/png 51.03 KB
9/2/2021
51.03 KB

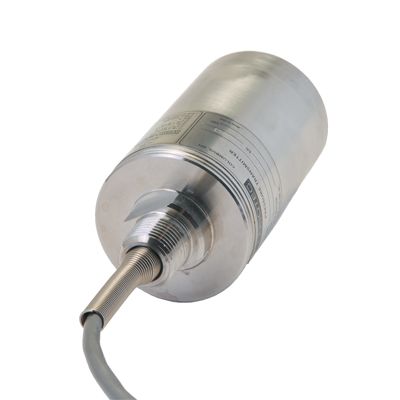

Model 811FM End View
image/png 92.69 KB
9/2/2021
92.69 KB

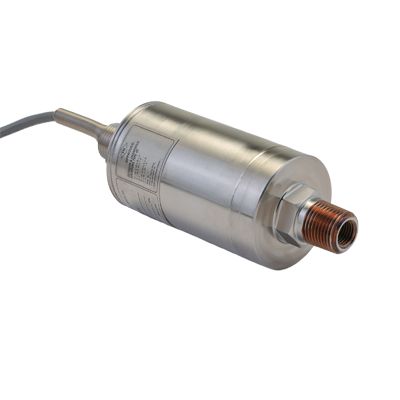

Model 811FM Bottom View
image/png 69.53 KB
9/2/2021
69.53 KB

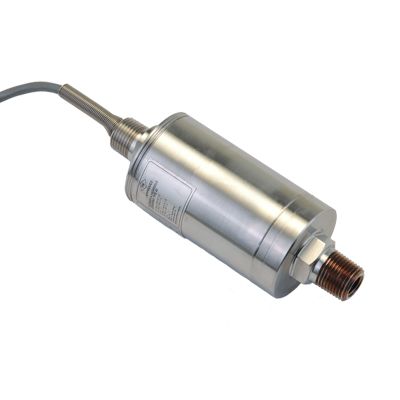

Model 811FM Top View
image/png 74.68 KB
9/2/2021
74.68 KB

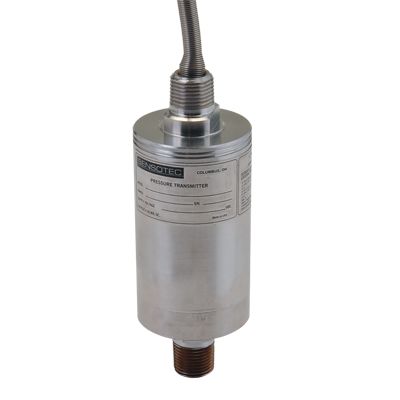

Model 811FM Front View
