Slip Ring Torque Transducers

Model 1100

1104-1107 rotary slip ring torque sensor. 100 lb-in to 100,000 lb-in. 0.1 % non-linearity and hysteresis. Circular keyed shaft configuration

A line of rotary slip ring torque sensors, Models 1104 to 1107, primarily designed for a multitude of general test and measurement applications, such as motor testing. Can be used to monitor start up, running, and stall torque levels. Capacity range from 100 in-lb to 100000 in-lb for shaft mounting configurations.

Features
  • 100 in-lb to 100000 in-lb capacity range
  • 0.1 % non-linearity and hysteresis
  • Manual brush lifter (standard)
  • Speed sensor and/or foot mount options
  • Lower cost for general “in-line” applications
  • Can be used with almost all existing dc and ac signal conditioning instrumentation
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 1104-1107 Rotating Shaft Torque Transducer Datasheet
application/pdf 244.86 KB
9/2/2021
244.86 KB
Test & Measurement Torque Accessories Datasheet
application/pdf 591.34 KB
9/2/2021
591.34 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 1104 Outline Drawing
application/pdf 67.62 KB
9/2/2021
67.62 KB
Model 1107 Outline Drawing
application/pdf 72.81 KB
9/2/2021
72.81 KB
Model 1100 External Wiring Diagram
application/pdf 170.33 KB
9/2/2021
170.33 KB
Model 1105 Outline Drawing
application/pdf 114.71 KB
9/2/2021
114.71 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 1100 Series Product Photo
application/zip 715.4 KB
9/2/2021
715.4 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

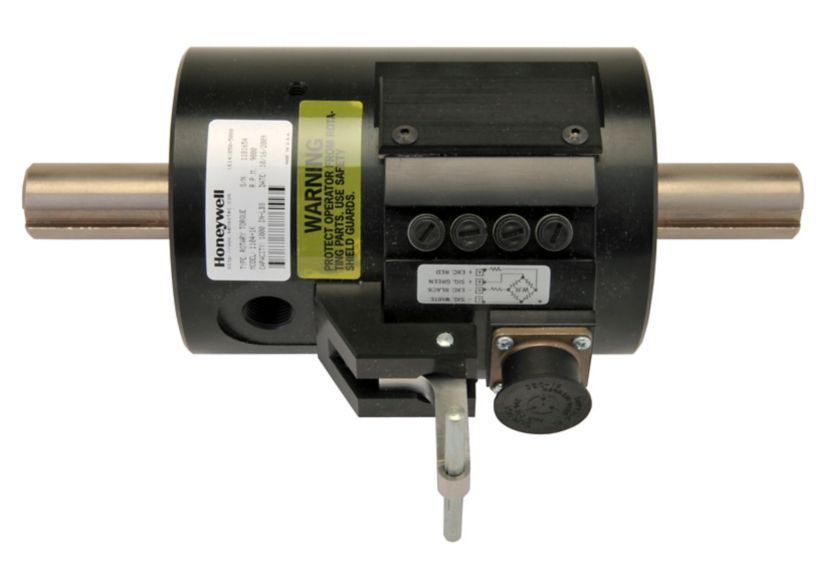

Model 1100 Side View
image/jpeg 443.16 KB
9/2/2021
443.16 KB

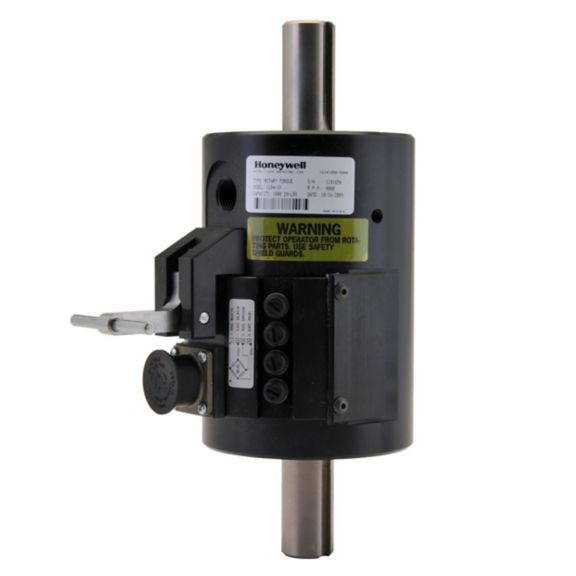

Model 1100 Front View
image/jpeg 173.45 KB
9/2/2021
173.45 KB

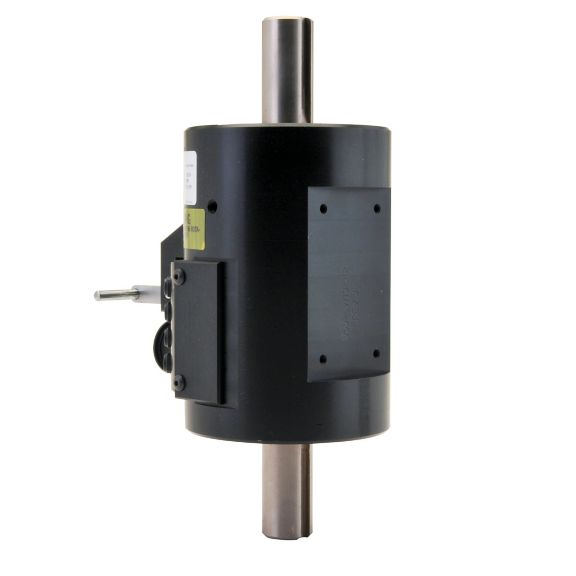

Model 1100 Back View
