Slip Ring Torque Transducers

Model 1103

Low capacity rotary slip-ring torque transducer. 10 oz-in to 20 oz-in. 0.05 % non-linearity and hysteresis. Circular shaft configuration

Model 1103 Low Capacity Torque Sensor, 10 oz-in to 20 oz-in, 0.05 % Non-linearity and Hysteresis, Lower Cost for General “In-line” Applications. A line of low capacity rotary slip ring torque sensors primarily designed for fractional horsepower motor test applications. Instrumental in monitoring start up, running, and stall torque levels during development and qualification of these motors. Capacity range from 10 in-oz to 20 in-oz for small shaft mounting configurations.

Features
  • 10 in-oz and 20 in-oz capacities
  • 0.05 % non-linearity and hysteresis
  • Lower cost for general “in-line” applications
  • Can be used with almost all existing dc and ac signal conditioning equipment
  • Manual brush lifter (standard)
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Torque Accessories Datasheet
application/pdf 591.34 KB
9/2/2021
591.34 KB
Model 1103 Low Capacity Torque Transducer Datasheet
application/pdf 330.37 KB
9/2/2021
330.37 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
White Paper: New Ways to Measure Torque
application/pdf 199.69 KB
9/2/2021
199.69 KB
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Nota técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 1103 Outline Drawing
application/pdf 60.08 KB
9/2/2021
60.08 KB
Model 1103 External Wiring Diagram
application/pdf 170.33 KB
9/2/2021
170.33 KB
Nota de aplicação
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Aerospace Test and Measurement Capabilities
application/pdf 1.95 MB
9/2/2021
1.95 MB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Model 1103 Series Product Photo
application/zip 840.74 KB
9/2/2021
840.74 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

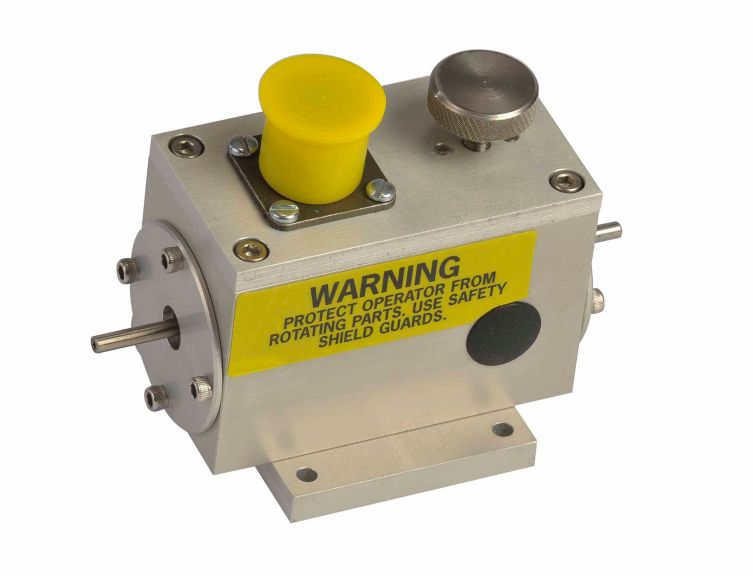

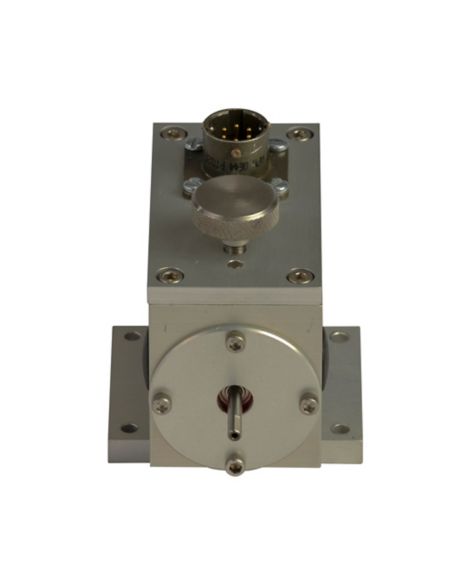

Model 1103 Side View
image/jpeg 157.17 KB
9/2/2021
157.17 KB
Model 1103 Back View
image/jpeg 188.78 KB
9/2/2021
188.78 KB

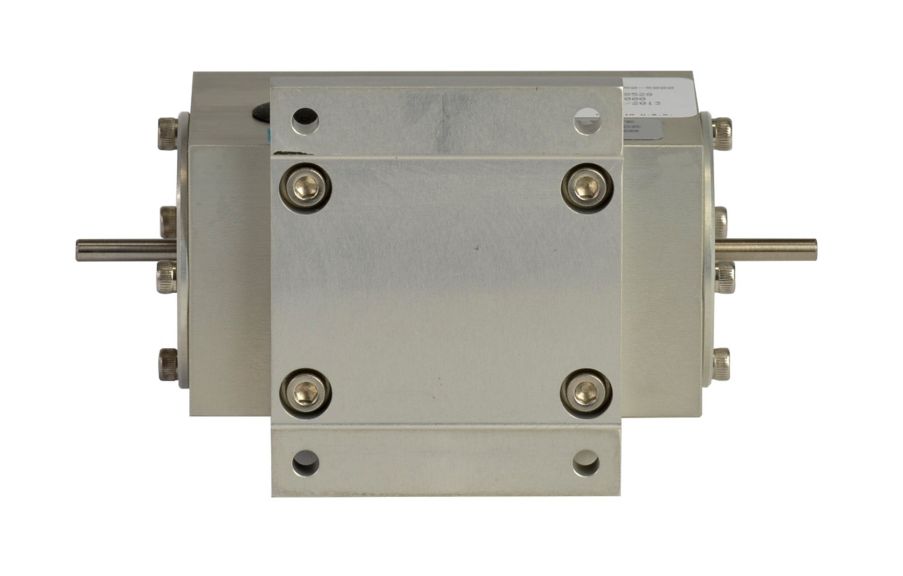

Model 1103 Bottom View
image/jpeg 284.98 KB
9/2/2021
284.98 KB

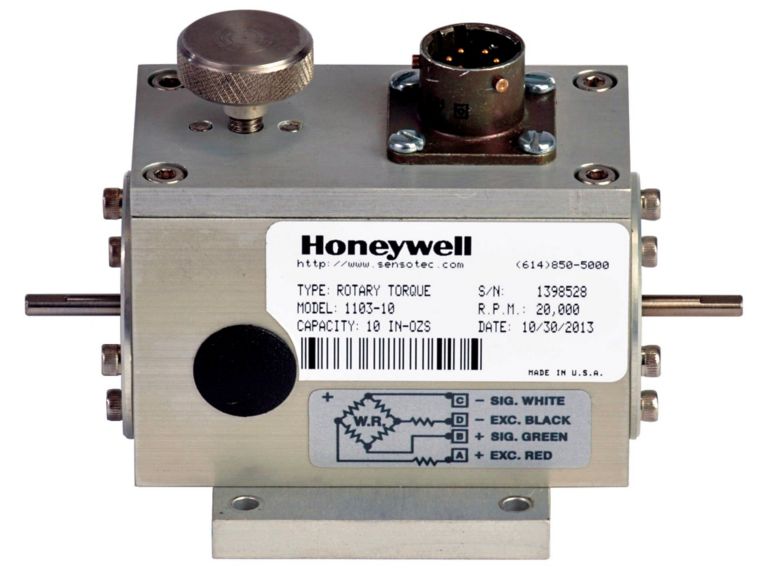

Model 1103 Front View
