Switches

Rotary Switches

Lever or knob action. 3- and 4-positions. Integral connectors (Metripack 280 and Sumitomo). Environmentally sealed design

Overview

Customization is standard with Honeywell's rotary switches, which are tested to withstand a wide range of environmental conditions and contaminants such as temperature cycling, chemical splashes, pressure wash, vibration, dust, humidity, and salt.

Honeywell's broad range of product options simplifies the way you build the rotary switch for and application. Optional features of momentary positions, terminal and integral connector types, UL-ratings, and various circuitry configurations are available to promote design flexibility. These options, coupled with the wide electrical rating and temperature range, come standard on every switch to meet the growing needs of our customers.

Features and benefits:
  • Durable construction: polypropylene plastic housing (rear) improves durability and supports equipment.
  • Wide range of configuration: two-, three-, or four-position switches, maintained and momentary (recoil) positions and numerous circuitry configurations allow for customization of equipment operation and control.
  • Many connector choices: integral connector (Metri-Pack, Sumitomo): Two-, three-, or four-position switches. Screw terminal: Two- or three-position switches.
  • Faster assembly: integral connectors facilitate quick assembly and minimize the potential for wiring errors.
  • Longer switch life: thanks to their ability to keep dirt and moisture out of the contact chamber.

Designed to withstand harsh environments with a durable, environmentally-sealed design, Honeywell rotary switches are found in rugged applications, from off-road vehicles like ATVs, snowmobiles, and motorcycles to agriculture, construction, industrial, lawn and garden equipment. Other product applications include:

  • golf carts
  • aerial lifts
  • telehandlers
  • skid loaders
  • forklifts
  • tractors
  • material handlers
  • marine equipment
  • generators
Specifications

Others

  • Diameter
    • 22,1 mm [0.87 in]
  • Thickness
    • 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Series Name
    • Key and Rotary Switches
  • Match Existing Key Codes
    • Optional (with factory approval)
  • Temperature
    • -40 °C to 85 °C] -40 °F to 185 °F]
  • Depth Behind Panel
    • 43,43 mm [1.71 in]
  • Multiple Key Codes
    • Optional
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Chamber Sealing
    • O-ring
  • Unique Key Codes
    • Optional
  • Connector
    • MetriPak 280
  • Electrical Rating
    • 12 Vdc, 20 A; 24 Vdc, 8 A (Res.)
  • Position
    • Four [Off-Ignition-Ignition Heat-Ignition Heat Start (momentary)]; 4 terminals
    • Three [Off (magneto ground)-On-Start (momentary)]; 6 terminals
    • Three [Off-On(1)-On(2 Dual Circuit)]; 4 terminals
    • Three [Off-On-Start (momentary)]; 4 terminals
    • Two (Off-On); 4 terminals
  • Mounting
    • Panel

Others

  • Diameter
    • 22,1 mm [0.87 in]
  • Thickness
    • 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Series Name
    • Key and Rotary Switches
  • Match Existing Key Codes
    • Optional (with factory approval)
  • Temperature
    • -40 °C to 85 °C] -40 °F to 185 °F]
  • Depth Behind Panel
    • 43,43 mm [1.71 in]
  • Multiple Key Codes
    • Optional
  • Cycle Life (Rotary)
    • 25000 Cycles
  • Chamber Sealing
    • O-ring
  • Unique Key Codes
    • Optional
  • Connector
    • MetriPak 280
  • Electrical Rating
    • 12 Vdc, 20 A; 24 Vdc, 8 A (Res.)
  • Position
    • Four [Off-Ignition-Ignition Heat-Ignition Heat Start (momentary)]; 4 terminals
    • Three [Off (magneto ground)-On-Start (momentary)]; 6 terminals
    • Three [Off-On(1)-On(2 Dual Circuit)]; 4 terminals
    • Three [Off-On-Start (momentary)]; 4 terminals
    • Two (Off-On); 4 terminals
  • Mounting
    • Panel
  • Diameter : 22,1 mm [0.87 in]
  • Thickness : 3,18 mm to 6,35 mm [0.15 in to 0.25 in]
  • Series Name : Key and Rotary Switches
  • Match Existing Key Codes : Optional (with factory approval)
  • Temperature : -40 °C to 85 °C] -40 °F to 185 °F]
  • Depth Behind Panel : 43,43 mm [1.71 in]
  • Multiple Key Codes : Optional
  • Cycle Life (Rotary) : 25000 Cycles
  • Chamber Sealing : O-ring
  • Unique Key Codes : Optional
  • Connector : MetriPak 280
  • Electrical Rating : 12 Vdc, 20 A; 24 Vdc, 8 A (Res.)
  • Position : Four [Off-Ignition-Ignition Heat-Ignition Heat Start (momentary)]; 4 terminals|Three [Off (magneto ground)-On-Start (momentary)]; 6 terminals|Three [Off-On(1)-On(2 Dual Circuit)]; 4 terminals|Three [Off-On-Start (momentary)]; 4 terminals|Two (Off-On); 4 terminals
  • Mounting : Panel
Manuals and Guides
Name
Description
File Size
Date
Size
Controls, Monitors, and Pressure Switches Range Guide
application/pdf 1.45 MB
7/22/2021
1.45 MB
Key and Rotary Switches Line Guide
application/pdf 291.69 KB
8/5/2021
291.69 KB
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Brochure
Name
Description
File Size
Date
Size
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
Application Note
Name
Description
File Size
Date
Size
All-Terrain Vehicle Solutions
application/pdf 803.57 KB
12/20/2022
803.57 KB
Platform Vehicles
application/pdf 628.05 KB
12/20/2022
628.05 KB
Forestry Vehicles
application/pdf 1.05 MB
12/20/2022
1.05 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.35 MB
9/8/2022
6.35 MB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Product Photo
Name
Description
File Size
Date
Size
Rotary Switches Product Photo
application/zip 2.81 MB
7/22/2021
2.81 MB

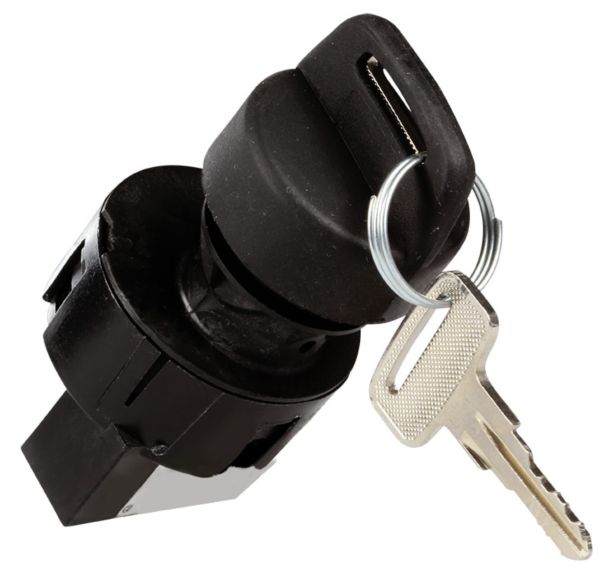

89165 lowres photo
image/jpeg 72.26 KB
8/5/2021
72.26 KB

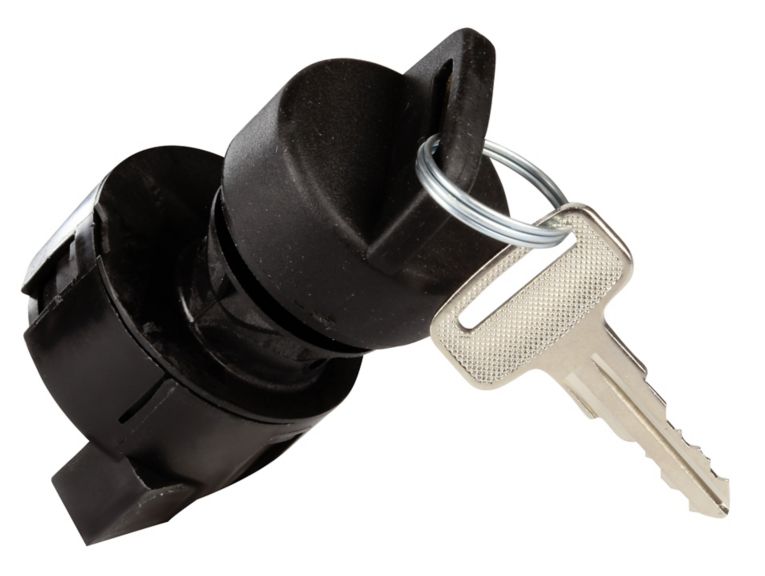

89697 highres photo
image/jpeg 592.56 KB
8/5/2021
592.56 KB

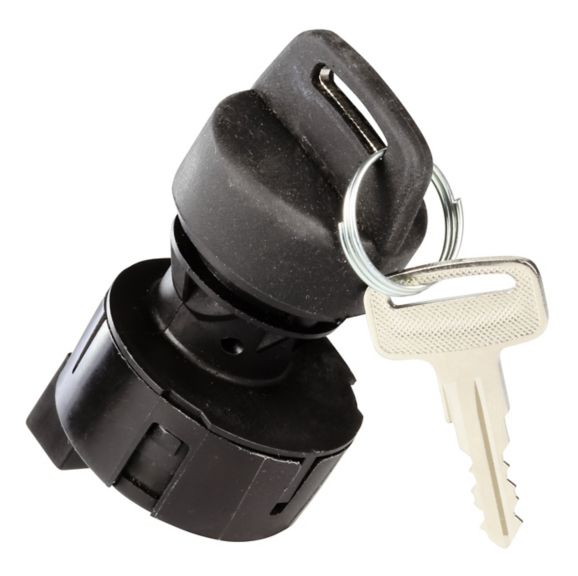

84825 highres photo
image/jpeg 369.56 KB
8/5/2021
369.56 KB
84826 highres photo
image/jpeg 667.18 KB
8/5/2021
667.18 KB

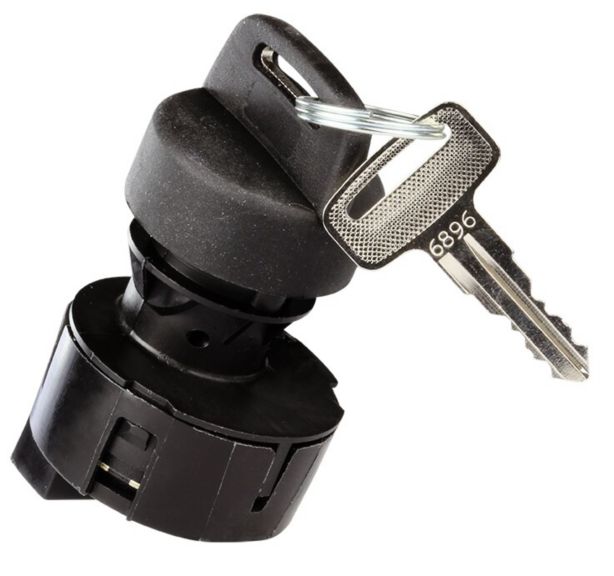

84826 lowres photo
