Velocity Accelerometers

Constant Current - Model MAV52 Series

Velocity accelerometers with connector, integral cable, or submersible cable electrical termination. 1/4-18 UNF female mounting hole. 50 G

The Model MAV52 amplified piezoelectric accelerometers with velocity output are designed to be used in Industrial test and automation environments: including laboratory testing, modal studies and test cells. The MAV52 is ideal for applications where velocity content of vibration is a more meaningful parameter to measure and where noise issues or system simplicity makes integration of the acceleration signal in the sensor rather than the signal conditioning more attractive. The 4 mA to 20 mA output makes it ideal in applications where noise, cable losses and long cable runs are likely to be an issue.

The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data. The model MAV52 is available in a number of configurations and options that includes connector or integral stainless steel armored cable (specify length at time of ordering), intrinsically safe option or a submersible format. The mounting hole can be supplied with different threads. The Model MAV52 can be supplied in a number of different sensitivities to suit the expected vibration levels for the application.

Features
  • Velocity measurement
  • 2 Hz to 10 kHz usable frequency range
  • 4 mA to 20 mA proportional to velocity
  • Submersible option
Ficha Técnica
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Model MAV52 Accelerometer Datasheet
application/pdf 221.15 KB
9/2/2021
221.15 KB
Test & Measurement Accelerometer Accessories Datasheet
application/pdf 325.39 KB
9/2/2021
325.39 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
application/pdf 325.33 KB
9/2/2021
325.33 KB
Folheto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
T&M Overview Brochure
application/pdf 428.72 KB
9/2/2021
428.72 KB
Foto do produto
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Constant Current - Model MAV52 Series Product Photo
application/zip 408.51 KB
9/2/2021
408.51 KB
Outros
Nome
Descrição
Tamanho do arquivo
Data
Tamanho

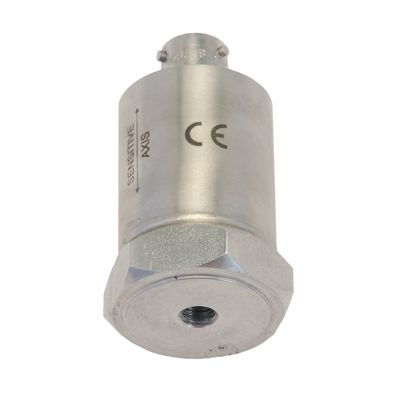

Model MAV52 Bottom View
image/png 86.6 KB
9/2/2021
86.6 KB

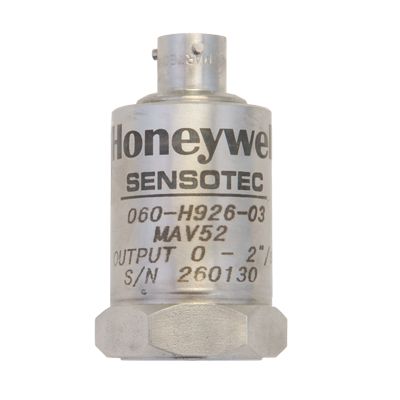

Model MAV52 Front View
image/png 100.62 KB
9/2/2021
100.62 KB

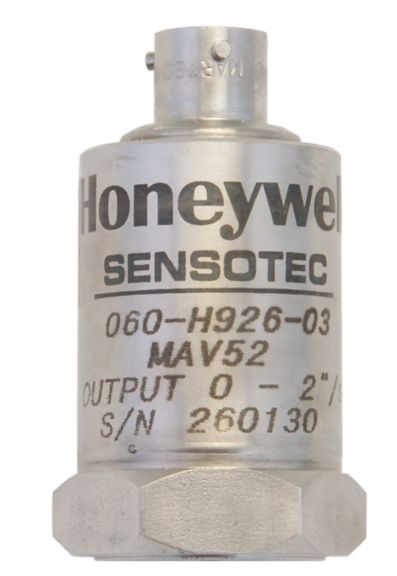

Model MAV52 highres photo
image/jpeg 82.76 KB
9/2/2021
82.76 KB

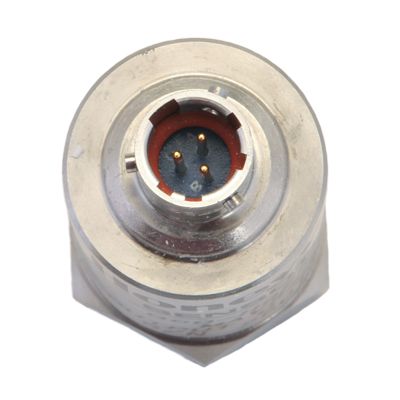

Model MAV52 Top View
image/png 140.64 KB
9/2/2021
140.64 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Model MAV52 Accelerometer Datasheet
221.15 KB
9/2/2021
221.15 KB
Model MAV52 Bottom View
86.6 KB
9/2/2021
86.6 KB
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
325.39 KB
Constant Current - Model MAV52 Series Product Photo
408.51 KB
9/2/2021
408.51 KB
Model MAV52 Front View
100.62 KB
9/2/2021
100.62 KB
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
325.33 KB
T&M Overview Brochure
428.72 KB
9/2/2021
428.72 KB
Model MAV52 highres photo
82.76 KB
9/2/2021
82.76 KB
Model MAV52 Top View
140.64 KB
9/2/2021
140.64 KB
Nome
Descrição
Tamanho do arquivo
Data
Tamanho
Test & Measurement Model MAV52 Accelerometer Datasheet
221.15 KB
9/2/2021
Test & Measurement Accelerometer Accessories Datasheet
325.39 KB
9/2/2021
Accelerometer Mating Connector/Cable Assembly Datasheet
325.33 KB
9/2/2021
T&M Overview Brochure
428.72 KB
9/2/2021
Constant Current - Model MAV52 Series Product Photo
408.51 KB
9/2/2021
Model MAV52 Bottom View
86.6 KB
9/2/2021
Model MAV52 Front View
100.62 KB
9/2/2021
Model MAV52 highres photo
82.76 KB
9/2/2021
Model MAV52 Top View
140.64 KB
9/2/2021
SKU
Description
alt
060-J079-01
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
alt
060-J079-02
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
alt
060-J256-01
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
alt
060-J256-02
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
SKU
Description
alt
060-J079-01
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
alt
060-J079-02
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
alt
060-J256-01
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
alt
060-J256-02
Model MAV52, current output velocity accelerometer, top cable exit, sensitivity 0.5 in/sec for 4 mA to 20 mA, with 16 feet stainless steel armored PTFE cable
