Transducteurs de couple à bague collectrice

Model 1103

Low capacity rotary slip-ring torque transducer. 10 oz-in to 20 oz-in. 0.05 % non-linearity and hysteresis. Circular shaft configuration

Model 1103 Low Capacity Torque Sensor, 10 oz-in to 20 oz-in, 0.05 % Non-linearity and Hysteresis, Lower Cost for General “In-line” Applications. A line of low capacity rotary slip ring torque sensors primarily designed for fractional horsepower motor test applications. Instrumental in monitoring start up, running, and stall torque levels during development and qualification of these motors. Capacity range from 10 in-oz to 20 in-oz for small shaft mounting configurations.

Features
  • 10 in-oz and 20 in-oz capacities
  • 0.05 % non-linearity and hysteresis
  • Lower cost for general “in-line” applications
  • Can be used with almost all existing dc and ac signal conditioning equipment
  • Manual brush lifter (standard)
Fiche technique
Nom
La description
Taille du fichier
Date
Taille
Model 1103 Low Capacity Torque Transducer Datasheet
application/pdf 327.03 KB
7/21/2021
327.03 KB
Test & Measurement Torque Accessories Datasheet
application/pdf 585.15 KB
7/21/2021
585.15 KB
Manuels et guides
Nom
La description
Taille du fichier
Date
Taille
T&M Torque Transducer Range Guide
application/pdf 3.05 MB
7/21/2021
3.05 MB
Brochure
Nom
La description
Taille du fichier
Date
Taille
White Paper: New Ways to Measure Torque
application/pdf 195.77 KB
7/21/2021
195.77 KB
T&M Overview Brochure
application/pdf 418.77 KB
7/21/2021
418.77 KB
Note technique
Nom
La description
Taille du fichier
Date
Taille
Model 1103 Outline Drawing
application/pdf 63.24 KB
7/21/2021
63.24 KB
Model 1103 External Wiring Diagram
application/pdf 163.05 KB
7/21/2021
163.05 KB
Note d'application
Nom
La description
Taille du fichier
Date
Taille
Aerospace Test and Measurement Capabilities
application/pdf 1.94 MB
7/21/2021
1.94 MB
Photo du produit
Nom
La description
Taille du fichier
Date
Taille
Model 1103 Series Product Photo
application/zip 840.74 KB
7/21/2021
840.74 KB
Autres
Nom
La description
Taille du fichier
Date
Taille

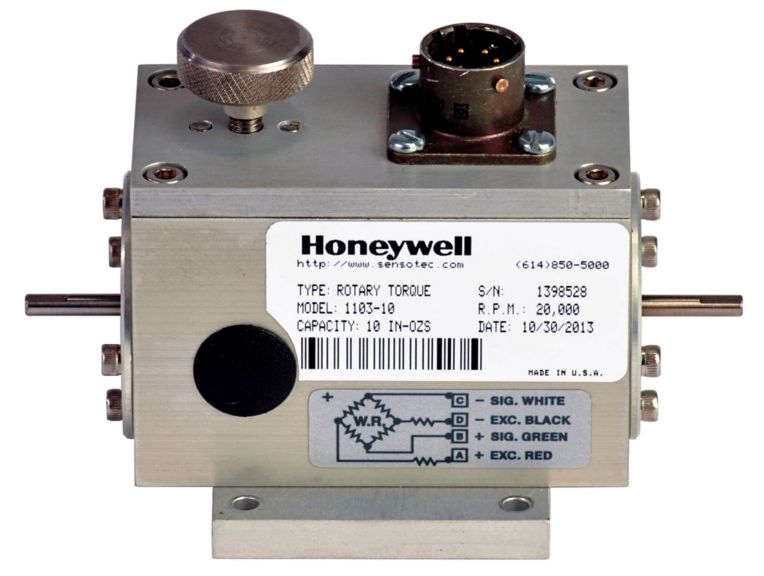

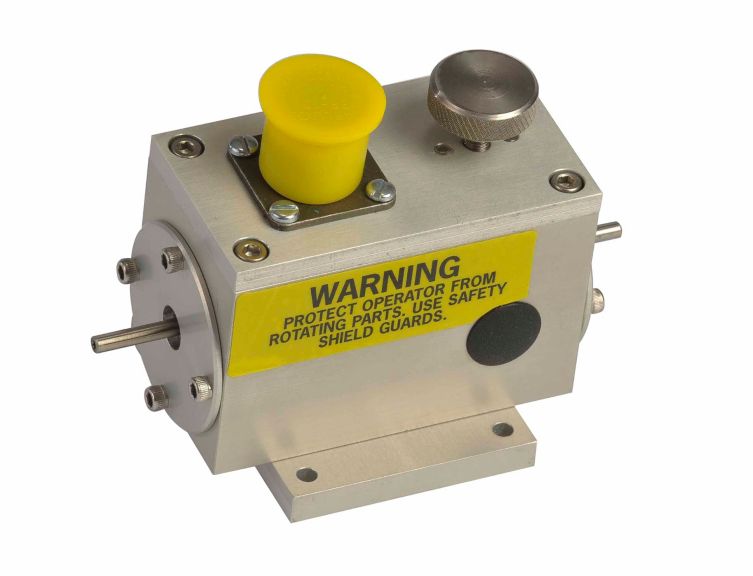

Model 1103 Back View
image/jpeg 188.78 KB
7/21/2021
188.78 KB

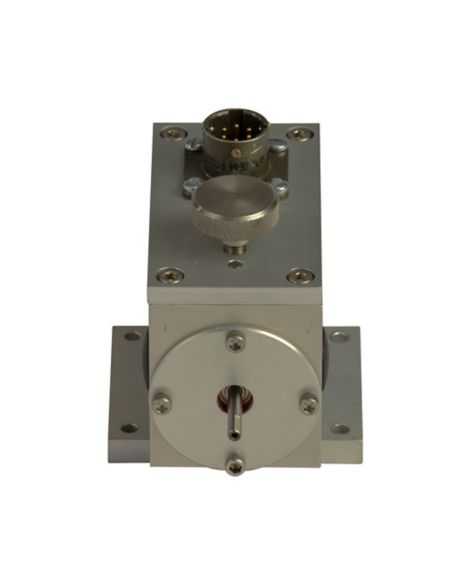

Model 1103 Front View
image/jpeg 310.44 KB
7/21/2021
310.44 KB

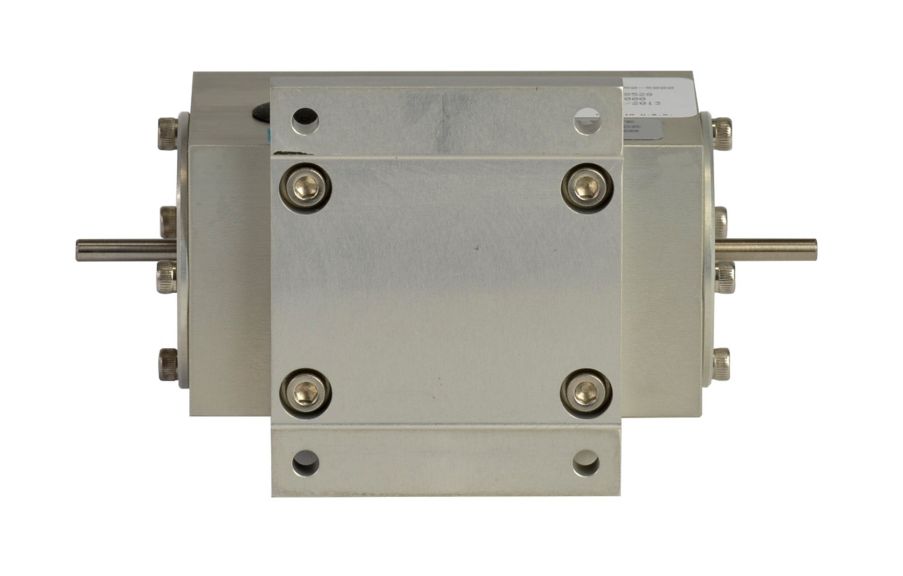

Model 1103 Bottom View
