Analog Telemetry (WDC) Torque Transducers

Model 1205B

Model 1205B Rotary Torque / RPM/HP Measurement System. Three Analog Outputs. Optional Isolated Output Channel.

Overview

The Model 1205B is a wireless telemetry system capable of monitoring the parameters of torque, RPM, and horsepower utilizing a 1226A collar assembly, 2120B transmitter, stationary loop antenna, 1211D power seperation unit, and 1642A receiver unit.

Features
  • dc to 1000 Hz frequency response
  • Three analog outputs and optional isolated output channel
  • 10 kHz sampling rate
  • 175 microstrain (0.5 mV/V) transmitter sensitivity
  • Bench-mounted signal conditioner and readout
Data Sheet
Name
Description
File Size
Date
Size
Test & Measurement Torque Accessories Datasheet
application/pdf 585.15 KB
7/17/2021
585.15 KB
Manuals and Guides
Name
Description
File Size
Date
Size
T&M Torque Transducer Range Guide
application/pdf 3.05 MB
7/17/2021
3.05 MB
Brochure
Name
Description
File Size
Date
Size
T&M Overview Brochure
application/pdf 418.77 KB
7/17/2021
418.77 KB
White Paper: New Ways to Measure Torque
application/pdf 195.77 KB
7/17/2021
195.77 KB
Others
Name
Description
File Size
Date
Size

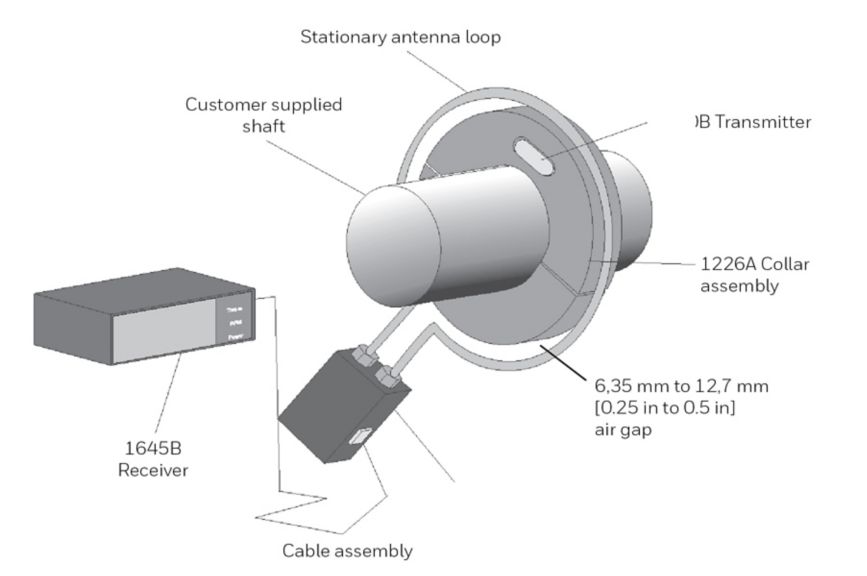

Model 1205B Typical System Diagram
