Rotary, Non-contact, Amplified Torque Transducers
Model 1700
Non-contact amplified rotary torque transducer. 0.02 Nm to 1500 Nm capacity range. 0.25% accuracy. Built-in instrumentation amplifier.
Overview
Model 1700 series non-contact amplified rotary torque transducers are suitable for laboratory applications as well as industrial environments because of their compact size and multiple mounting options. The contactless transmission of supply voltage and measuring signal enables continuous operation with low maintenance.
Features
- Non-contact amplified rotary torque transducer
- 0.02 Nm to 1500 Nm capacity range
- 0.25% accuracy
- Built-in instrumentation amplifier (± 10 V output ̵1: standard)
- Speed sensor or angle encoder option
- Compact size
- Custom options available
- Contactless
- Wide application range
Data Sheet
Name
Description
File Size
Date
Size
Model 1700 Amplified Torque Transducer Datasheet
application/pdf 303.81 KB
7/17/2021
303.81 KB
Test & Measurement Torque Accessories Datasheet
application/pdf 585.15 KB
7/17/2021
585.15 KB
Manuals and Guides
Name
Description
File Size
Date
Size
T&M Torque Transducer Range Guide
application/pdf 3.05 MB
7/17/2021
3.05 MB
Brochure
Name
Description
File Size
Date
Size
White Paper: New Ways to Measure Torque
application/pdf 195.77 KB
7/17/2021
195.77 KB
Others
Name
Description
File Size
Date
Size

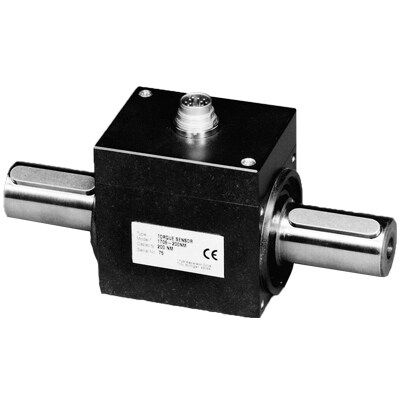

Model 1700 Front View (high res)
