Miller Xenon™ Permanent Horizontal Lifeline Kits
Miller Xenon™ Permanent Horizontal Lifeline Kits
Обзор продукта
FOR MULTIPLE WORKERS
Xenon™ Permanent Horizontal Lifeline Kits provide automatic pass-through fall protection for multiple workers that increase worker mobility: safety and productivity. For use along crane rail runways: loading bays/docks: conveyors: rooftops: pipe racks: bridges and many other applications.
Easy To Install
Xenon™ kits provide do-it-yourself installation and feature patented stainless steel components that are easy-to-use and require minimal maintenance.
Better Systems by Design
In addition to meeting all applicable global standards for safety at height: all components of Xenon™ kits are designed for versatility: reliability and comfort.

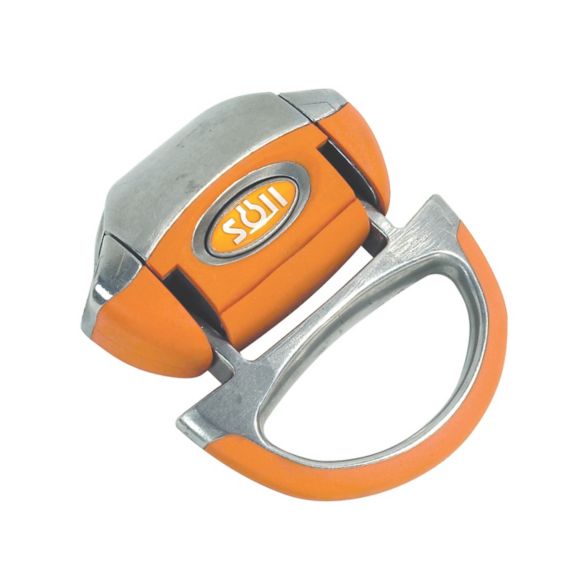

Xenon™ Shuttle
Xenon Components
1005709 - Xenon Shuttle
Xenon™ Permanent Horizontal Lifeline Kits provide automatic pass-through fall protection for multiple workers that increase worker mobility: safety and productivity. For use along crane rail runways: loading bays/docks: conveyors: rooftops: pipe racks: bridges and many other applications.
Easy To Install
Xenon™ kits provide do-it-yourself installation and feature patented stainless steel components that are easy-to-use and require minimal maintenance.
Better Systems by Design
In addition to meeting all applicable global standards for safety at height: all components of Xenon™ kits are designed for versatility: reliability and comfort.
Xenon™ Shuttle
- Adaptable design– For smooth pass-through of intermediate brackets
- Double-locking mechanism– Ensures security: yet allows for easy: one-hand operation
- Fixed pass-through parts – The shuttle is ideal for dusty: gritty or salty environments
- Innovative 4-in-1 design– Serves as shock absorber: turnbuckle: tension indicator and fall indicator
- Pop-out visual indicator – Alerts the user to any load impact on the system
- Compact design – Allows for a shorter distance to the end brackets: providing greater safety for entry and exit of the system
- Users can gauge and adjust tension easily
- Automatic pass-through design – Allows for smooth passage of the Xenon shuttle providing 100% connection to the system
- Simple installation–Single-bolt design and easy-to-remove cable holder guide simplifies installation and maintenance
- Flexibility – In the event of a load impact or fall: individual brackets can be replaced without disassembling or replacing the original wire rope
- Maximum Versatility - Available in adjustable or fixed position styles
- Stainless steel 5/16-in. (8 mm) wire rope
- Stainless steel: swageless fittings for quick: easy installation
- Stainless steel D-bolt anchorage connectors rated to 10:000 lbs. (45kN)
Xenon Components
1005709 - Xenon Shuttle
- Self-aligns for smooth automatic pass-through of intermediate brackets
- Dual-locking mechanism for added safety
- Automatic pass-through bracket allows easy passage of Xenon shuttle for 100% connection to the system
- Can be configured as free floating or locked
- Brackets can be attached to a fitted cable to allow for easy replacement
- Can also be ordered without hardware using this model number: 1010609
- Absorbs energy to reduce system forces
- Includes a turnbuckle mechanism for easy tensioning
- Features a tension indicator to show when properly tensioned
- Incorporates a fall indicator to show someone has fallen into the system
- Compact design allows for immediate connection for added worker safety
- Provides for easy installation of cable
- Requires no specialty swaging tools
- Features 5/8-in. (15.9 mm) hole for hardware
- Can be mounted on a vertical surface or overhead for added versatility
- Includes 5/8-in. (15.9 mm) diameter x 5-in. (127 mm) long stainless steel bolt w/nut and washer
- Features 5/8-in. (15.9 mm) hole for hardware
- Can be mounted on a vertical surface or overhead for added versatility
Xарактеристики
Others
- Standards
- OSHA
- ANSI A10.32-2004
- OSHA
- ANSI A10.32-2004
- Workers Per System
- 2
Others
- Standards
- OSHA
- ANSI A10.32-2004
- OSHA
- ANSI A10.32-2004
- Workers Per System
- 2
- Standards : OSHA|ANSI A10.32-2004|OSHA | ANSI A10.32-2004
- Workers Per System : 2
