속도 및 방향, 속도 센서 IC

VF401

2선 MR 미세 피치 링 자석 센서 IC. 플랫 TO-92 스타일 패키지. 향상된 감도, ±7G 일반 디지털 소싱 출력

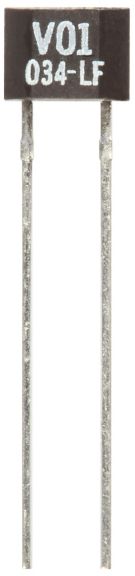

VF401은 소형 플랫 TO-92 스타일 플라스틱 패키지에 담겨 전류를 출력하는 고성능 디지털 2선 MR(자기 저항) 센서로 미세 피치 링 자석을 감지하도록 설계됐습니다.

고유의 VF401 브리지 배열(특허 번호 6,297,628)로 센서 신호 또는 정확도의 손실을 감소하면서 대상과 센서 간에 더 큰 에어갭을 갖도록 최적화됐습니다.

VF401은 런아웃(링 자석의 내외경에 대한 상대적인 센서 위치의 변경)에 덜 민감합니다. 또한 기울기 공차(감지 소자 및 링 자석의 평행 위치로부터의 편차)에 덜 민감하여 일반적인 링 자석 센서가 2° ~ 3°인데 반해 10°까지 수용할 뿐만 아니라, 꼬임(극 전이에 대한 상대적인 브리지 러너의 완전 각 위치의 편차)에도 덜 민감합니다.

데이터시트
Name
Description
File Size
Date
Size
VF401 2-Wire Fine Pitch Ring Magnet Sensor
application/pdf 174.06 KB
9/14/2021
174.06 KB
매뉴얼 및 가이드
Name
Description
File Size
Date
Size
Transportation Range Guide
application/pdf 18.57 MB
10/4/2021
18.57 MB
Position Sensors Product Range Guide
application/pdf 4.85 MB
10/4/2021
4.85 MB
브로슈어
Name
Description
File Size
Date
Size
Making Sense of Sensing
application/pdf 3.37 MB
10/6/2021
3.37 MB
테크니컬 노트
Name
Description
File Size
Date
Size
Magnetic Sensor IC Product Line Card
application/pdf 480.99 KB
9/14/2021
480.99 KB
Magnetic Sensor IC Selection Chart
application/pdf 372.87 KB
9/14/2021
372.87 KB
어플리케이션 노트
Name
Description
File Size
Date
Size
Construction Vehicles -
application/pdf 984.29 KB
10/25/2022
984.29 KB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.76 MB
9/14/2021
3.76 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
10/25/2022
872.87 KB
Agricultural Vehicles -
application/pdf 1.11 MB
10/25/2022
1.11 MB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
5/31/2022
3.88 MB
제품 사진
Name
Description
File Size
Date
Size
VF401 Product Photo
application/zip 85.61 KB
9/14/2021
85.61 KB
VF401 highres photo
image/jpeg 75.35 KB
9/14/2021
75.35 KB
VF401 lowres photo
image/jpeg 21.62 KB
9/14/2021
21.62 KB
Name
Description
File Size
Date
Size
Magnetic Sensor IC Product Line Card
480.99 KB
9/14/2021
480.99 KB
VF401 Product Photo
85.61 KB
9/14/2021
85.61 KB
Magnetic Sensor IC Selection Chart
372.87 KB
9/14/2021
372.87 KB
VF401 highres photo
75.35 KB
9/14/2021
75.35 KB
VF401 2-Wire Fine Pitch Ring Magnet Sensor
174.06 KB
9/14/2021
174.06 KB
Construction Vehicles -
984.29 KB
10/25/2022
984.29 KB
Making Sense of Sensing
3.37 MB
10/6/2021
3.37 MB
Solutions For Healthier Air & HVAC Systems
3.76 MB
9/14/2021
3.76 MB
Defence Ground Vehicles -
872.87 KB
10/25/2022
872.87 KB
Transportation Range Guide
18.57 MB
10/4/2021
18.57 MB
Position Sensors Product Range Guide
4.85 MB
10/4/2021
4.85 MB
Agricultural Vehicles -
1.11 MB
10/25/2022
1.11 MB
VF401 lowres photo
21.62 KB
9/14/2021
21.62 KB
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
3.88 MB
Name
Description
File Size
Date
Size
VF401 2-Wire Fine Pitch Ring Magnet Sensor
174.06 KB
9/14/2021
Transportation Range Guide
18.57 MB
10/4/2021
Position Sensors Product Range Guide
4.85 MB
10/4/2021
Making Sense of Sensing
3.37 MB
10/6/2021
Magnetic Sensor IC Product Line Card
480.99 KB
9/14/2021
Magnetic Sensor IC Selection Chart
372.87 KB
9/14/2021
Construction Vehicles -
984.29 KB
10/25/2022
Solutions For Healthier Air & HVAC Systems
3.76 MB
9/14/2021
Defence Ground Vehicles -
872.87 KB
10/25/2022
Agricultural Vehicles -
1.11 MB
10/25/2022
Solutions For Healthier Air & HVAC Systems
3.88 MB
5/31/2022
VF401 Product Photo
85.61 KB
9/14/2021
VF401 highres photo
75.35 KB
9/14/2021
VF401 lowres photo
21.62 KB
9/14/2021
SKU
Description
alt
VF401
VF401 2-wire anisotropic magnetoresistive (AMR) sensor IC, ring magnet encoder, flat TO-92-style, 500 units/bulk
