Portables

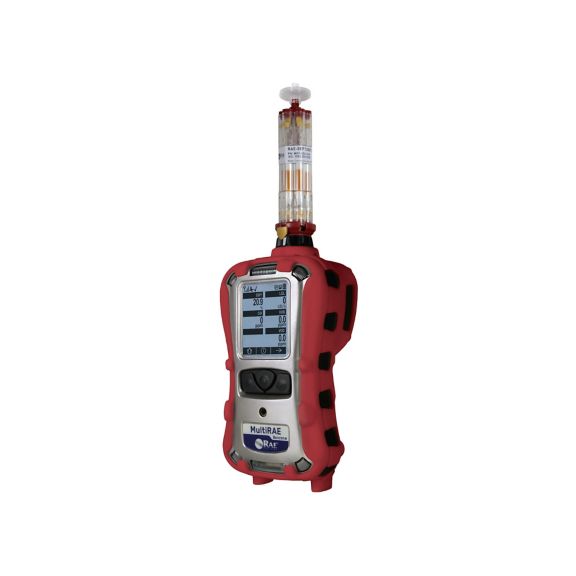

MultiRAE Benzene
Wireless Portable Multi-Gas Monitor With Benzene-Specific Measurement
The MultiRAE Benzene monitor combines the ability to make quick benzene-specific assessment (“snapshot”) measurements with the advantages of a versatile multi-gas monitor that can support approximately 20 intelligent interchangeable sensor options. Its optional wireless capability improves safety by providing real-time access to instrument readings and alarm status from any location, which delivers better situational awareness and faster incident response in a wide range of different applications.
Features and Benefits:
• Optional integrated wireless
• Snapshot Benzene specific measurement capability
• 20 field-interchangeable sensor options, including PID, LEL, and exotics like ammonia, chlorine, and formaldehyde
• Five local and remote alarms, including man down
• Dust-tight and waterproof (IP65-rated)
• Rugged design
• Long battery run-time
• Intuitive, icon-driven interface
• Flippable screen
• Large buttons for easy navigation even with up to three glove layers
• Continuous data logging — six months for five sensors 24/7
• Fully automated bump testing and calibration with AutoRAE 2
• Device Management with Honeywell Sotera™ Express
Application:
• Confined Space Entry
• Exploration
• Fracking
• Leak Detection
• Plant Shutdown & Turn-Around
Others
- Alarm Type
- Audible, Visual, Vibrating
- Sensor Range
- NH3 (0-100ppm), CO (0-2000ppm), H2S (0-200ppm), CL2 (0-50ppm), CLO2 (0-1ppm), ETO (0-100ppm), HCHO (0-10ppm), HCN (0-50ppm), CH3-SH (0-10ppm), NO (0-250ppm), NO2 (0-20ppm), O2 (0-30%vol), PH3 (0-20ppm), SO2 (0-20ppm), VOC (0-5000ppm), LEL (0-100%LEL), CO2 (0-50000ppm), Benzene (0-200ppm)
- Minimum Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Humidity Range
- 0%-95%
- Benefits
- Highly versatile and customizable
- Sub-Category
- Premium-Gas
- Maximum Temperature
- 50 degree Celsius
- 122 degree Fahrenheit
- Standards
- CSA: Class I, Division 1, Groups A, B, C, and D, T4
- Weight
- 880 gram
- 31 ounce av [Invisible]
- Sampling Pump Range
- 100ft (30m)
- Brand
- RAE
- Wireless Technology
- MESH, Wifi, BLE
- Gas Type
- NH3, CO, H2S, CL2, CLO2, ETO, HCHO, HCN,CH3-SH, NO, NO2, O2, PH3, SO2, VOC, LEL, CO2, Benzene
- Datalogging
- Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7)
- Battery Run Time
- 12-18
- Warranty
- Four years on Liq O2 sensors
- Ingress Protection
- IP65
- User Options
- 3 operation and programming keys (Mode, Y/+, and N/-). Multiple User Options can be selected
- Instrument Size
- 7.6 in x 3.8 in x 2.6 in D / [193 mm x 96.5 mm x 66 mm]
Others
- Alarm Type
- Audible, Visual, Vibrating
- Sensor Range
- NH3 (0-100ppm), CO (0-2000ppm), H2S (0-200ppm), CL2 (0-50ppm), CLO2 (0-1ppm), ETO (0-100ppm), HCHO (0-10ppm), HCN (0-50ppm), CH3-SH (0-10ppm), NO (0-250ppm), NO2 (0-20ppm), O2 (0-30%vol), PH3 (0-20ppm), SO2 (0-20ppm), VOC (0-5000ppm), LEL (0-100%LEL), CO2 (0-50000ppm), Benzene (0-200ppm)
- Minimum Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Humidity Range
- 0%-95%
- Benefits
- Highly versatile and customizable
- Sub-Category
- Premium-Gas
- Maximum Temperature
- 50 degree Celsius
- 122 degree Fahrenheit
- Standards
- CSA: Class I, Division 1, Groups A, B, C, and D, T4
- Weight
- 880 gram
- 31 ounce av [Invisible]
- Sampling Pump Range
- 100ft (30m)
- Brand
- RAE
- Wireless Technology
- MESH, Wifi, BLE
- Gas Type
- NH3, CO, H2S, CL2, CLO2, ETO, HCHO, HCN,CH3-SH, NO, NO2, O2, PH3, SO2, VOC, LEL, CO2, Benzene
- Datalogging
- Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7)
- Battery Run Time
- 12-18
- Warranty
- Four years on Liq O2 sensors
- Ingress Protection
- IP65
- User Options
- 3 operation and programming keys (Mode, Y/+, and N/-). Multiple User Options can be selected
- Instrument Size
- 7.6 in x 3.8 in x 2.6 in D / [193 mm x 96.5 mm x 66 mm]
- Alarm Type : Audible, Visual, Vibrating
- Sensor Range : NH3 (0-100ppm), CO (0-2000ppm), H2S (0-200ppm), CL2 (0-50ppm), CLO2 (0-1ppm), ETO (0-100ppm), HCHO (0-10ppm), HCN (0-50ppm), CH3-SH (0-10ppm), NO (0-250ppm), NO2 (0-20ppm), O2 (0-30%vol), PH3 (0-20ppm), SO2 (0-20ppm), VOC (0-5000ppm), LEL (0-100%LEL), CO2 (0-50000ppm), Benzene (0-200ppm)
- Minimum Temperature : -20 degree Celsius|-4 degree Fahrenheit
- Humidity Range : 0%-95%
- Benefits : Highly versatile and customizable
- Sub-Category : Premium-Gas
- Maximum Temperature : 50 degree Celsius|122 degree Fahrenheit
- Standards : CSA: Class I, Division 1, Groups A, B, C, and D, T4
- Weight : 880 gram|31 ounce av [Invisible]
- Sampling Pump Range : 100ft (30m)
- Brand : RAE
- Wireless Technology : MESH, Wifi, BLE
- Gas Type : NH3, CO, H2S, CL2, CLO2, ETO, HCHO, HCN,CH3-SH, NO, NO2, O2, PH3, SO2, VOC, LEL, CO2, Benzene
- Datalogging : Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7)
- Battery Run Time : 12-18
- Warranty : Four years on Liq O2 sensors
- Ingress Protection : IP65
- User Options : 3 operation and programming keys (Mode, Y/+, and N/-). Multiple User Options can be selected
- Instrument Size : 7.6 in x 3.8 in x 2.6 in D / [193 mm x 96.5 mm x 66 mm]
